(Ph. Eur. monograph 2230)
C26H40O5 432.6 130209-82-4
Action and use
Prostaglandin analogue; treatment of intraocular pressure
DEFINITION

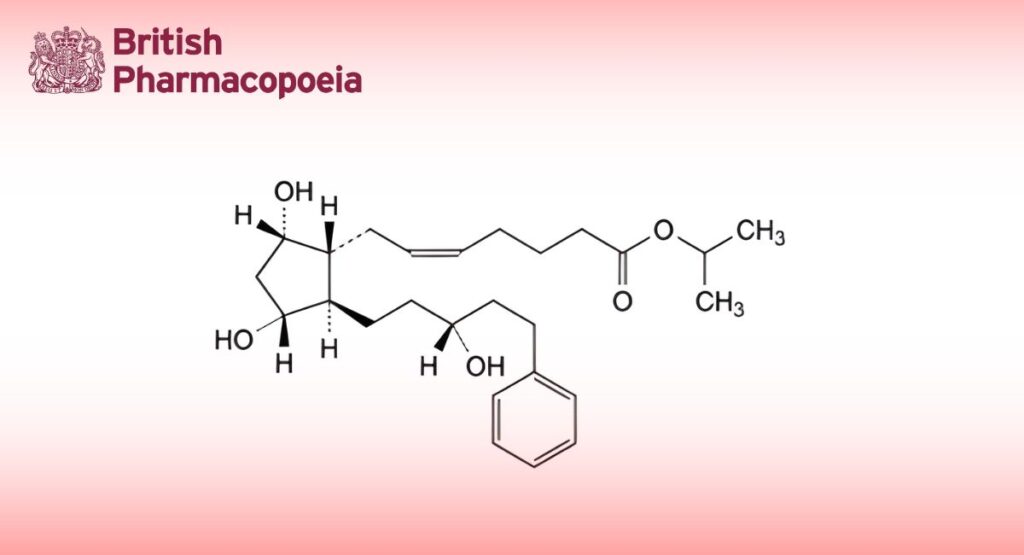

Propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-3,5-dihydroxy-2-[(3R)-3-hydroxy-5-phenylpentyl]cyclopentyl]hept-5-enoate.
Content
94.0 per cent to 102.0 per cent (anhydrous substance).
CHARACTERS
Appearance
Clear, colourless or yellow, viscous, oily liquid.
Solubility
Practically insoluble in water, very soluble in acetonitrile, freely soluble in anhydrous ethanol.
IDENTIFICATION
A. Infrared absorption spectrophotometry (2.2.24).
Comparison: Ph. Eur. reference spectrum of latanoprost.
B. Specific optical rotation (see Tests).
TESTS
Specific optical rotation (2.2.7)
+ 32.0 to + 37.0 (anhydrous substance).
Dissolve 0.100 g in acetonitrile R and dilute to 10.0 mL with the same solvent.
Related substances
Liquid chromatography (2.2.29). Carry out the test protected from light.
Test solution: Dissolve 20.0 mg of the substance to be examined in 2 mL of anhydrous ethanol R and dilute to 10.0 mL with heptane R.
Reference solution (a): Dissolve the contents of a vial of latanoprost for system suitability CRS (containing impurities E and F) in 200 μL of anhydrous ethanol R then add 800 μL of heptane R.
Reference solution (b): Dilute 1.0 mL of the test solution to 100.0 mL with the mobile phase. Dilute 1.0 mL of this solution to 10.0 mL with the mobile phase.
Reference solution (c): Dissolve 20.0 mg of latanoprost CRS in 2 mL of anhydrous ethanol R and dilute to 10.0 mL with heptane R.
Column:
— size: l = 0.25 m, Ø = 4.6 mm;
— stationary phase: silica gel for chromatography R (5 μm);
— temperature: 30 °C.
Mobile phase: anhydrous ethanol R, heptane R (6:94 V/V).
Flow rate: 1.3 mL/min.
Detection: Spectrophotometer at 210 nm.
Injection: 10 μL of the test solution and reference solutions (a) and (b).
Run time: Twice the retention time of latanoprost.
Identification of impurities: Use the chromatogram supplied with latanoprost for system suitability CRS and the chromatogram obtained with reference solution (a) to identify the peaks due to impurities E and F.
Relative retention: With reference to latanoprost (retention time = about 16 min): impurity E = about 0.9; impurity F = about 1.1.
System suitability Reference solution (a):
— resolution: minimum 2.0 between the peaks due to latanoprost and impurity F.
Calculation of percentage contents:
— for each impurity, use the concentration of latanoprost in reference solution (b).
Limits:
— impurity F: maximum 3.5 per cent;
— impurity E: maximum 0.4 per cent;
— unspecified impurities: for each impurity, maximum 0.10 per cent;
— sum of impurities other than F: maximum 1.0 per cent;
— reporting threshold: 0.05 per cent.
Impurity H
Liquid chromatography (2.2.29).
Solvent mixture: acetonitrile R, water R (30:70 V/V).
Test solution: Dissolve 25.0 mg of the substance to be examined in the solvent mixture and dilute to 25.0 mL with the solvent mixture.
Reference solution (a): Dissolve the contents of a vial of latanoprost impurity H CRS in 1.0 mL of the solvent mixture.
Reference solution (b): To 50 μL of the test solution add 450 μL of reference solution (a).
Column:
— size: l = 0.15 m, Ø = 4 mm;
— stationary phase: base-deactivated end-capped octadecylsilyl silica gel for chromatography R (5 μm);
— temperature: 60 °C.
Mobile phase:
— mobile phase A: phosphoric acid R, acetonitrile R1, water for chromatography R (0.1:30:70 V/V/V);
— mobile phase B: phosphoric acid R, water for chromatography R, acetonitrile R1 (0.1:20:80 V/V/V);
| Time (min) |
Mobile phase A (per cent V/V) |
Mobile phase B (per cent V/V) |
| 0 – 9 | 100 | 0 |
| 9 – 10 | 100 → 0 | 0 → 100 |
| 10 – 15 | 0 | 100 |
Flow rate: 1.0 mL/min.
Detection: Spectrophotometer at 200 nm.
Injection: 50 μL.
Identification of impurities: Use the chromatogram obtained with reference solution (a) to identify the peak due to impurity H.
Relative retention: With reference to latanoprost (retention time = about 12 min): impurity H = about 0.7.
System suitability: Reference solution (b):
— resolution: minimum 5.0 between the peaks due to impurity H and latanoprost.
Calculation of percentage content:
— use the concentration of impurity H in reference solution (a).
Limit:
— impurity H: maximum 0.15 per cent.
Water (2.5.32)
Maximum 0.50 per cent, determined on 0.100 g.
ASSAY
Liquid chromatography (2.2.29) as described in the test for related substances with the following modifications.
Injection: Test solution and reference solution (c).
Calculate the percentage content of C26H40O5 taking into account the assigned content of latanoprost CRS.
STORAGE
At a temperature of 2 °C to 8 °C.
IMPURITIES
Specified impurities E, F, H.
Other detectable impurities (the following substances would, if present at a sufficient level, be detected by one or other of the tests in the monograph. They are limited by the general acceptance criterion for other/unspecified impurities and/or by the general monograph Substances for pharmaceutical use (2034). It is therefore not necessary to identify these impurities for demonstration of compliance. See also 5.10. Control of impurities in substances for pharmaceutical use) A, B, C, D, G, J.

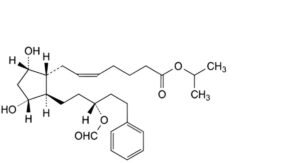

A. propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-2-[(3R)-3-(formyloxy)-5-phenylpentyl]-3,5-dihydroxycyclopentyl]hept- 5-enoate,

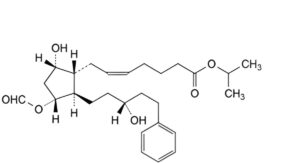

B. propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-3-(formyloxy)-5-hydroxy-2-[(3R)-3-hydroxy-5-
phenylpentyl]cyclopentyl]hept-5-enoate,

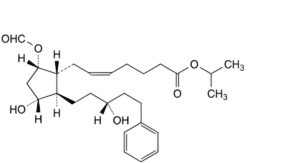

C. propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-5-(formyloxy)-3-hydroxy-2-[(3R)-3-hydroxy-5-
phenylpentyl]cyclopentyl]hept-5-enoate,

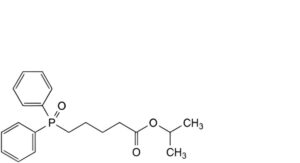

D. propan-2-yl 5-(diphenylphosphoryl)pentanoate,

E. propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-3,5-dihydroxy-2-[(3S)-3-hydroxy-5-phenylpentyl]cyclopentyl]hept-5-enoate,

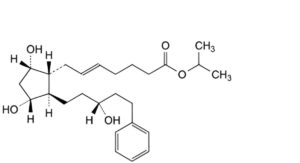

F. propan-2-yl (5E)-7-[(1R,2R,3R,5S)-3,5-dihydroxy-2-[(3R)-3-hydroxy-5-phenylpentyl]cyclopentyl]hept-5-enoate,

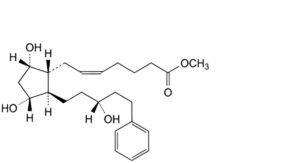

G. methyl (5Z)-7-[(1R,2R,3R,5S)-3,5-dihydroxy-2-[(3R)-3-hydroxy-5-phenylpentyl]cyclopentyl]hept-5-enoate,

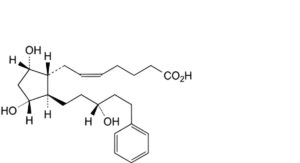

H. (5Z)-7-[(1R,2R,3R,5S)-3,5-dihydroxy-2-[(3R)-3-hydroxy-5-phenylpentyl]cyclopentyl]hept-5-enoic acid,

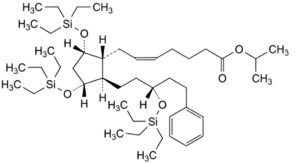

J. propan-2-yl (5Z)-7-[(1R,2R,3R,5S)-2-[(3R)-5-phenyl-3-[(triethylsilyl)oxy]pentyl]-3,5-bis[(triethylsilyl)oxy]cyclopentyl]hept-5-enoate.
